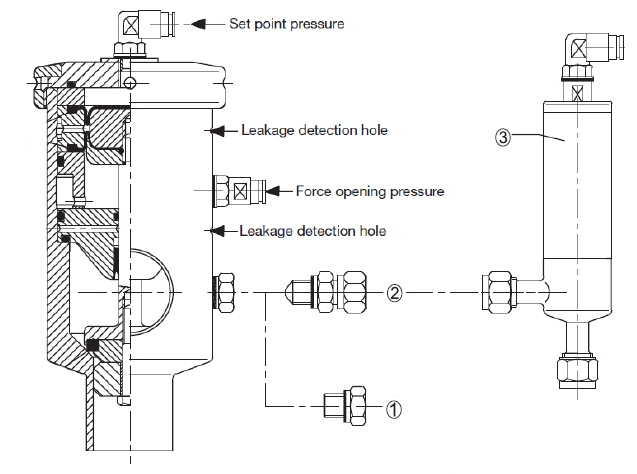

SB Pressure Exhaust Valve
The Alfa Laval SB Pressure Exhaust Valve is a regulating valve that automatically reduces the working pressure in brewery, food, dairy and beverage process tanks as the pressure in the vessel increases. The valve is an integral part of SCANDI BREW® tank top system.
Safe, effective pressure regulation
Easily integrated into a central process control system, this pneumatic valve ensures safe, reliable and hygienic performance by releasing pressure in the process tank when it exceeds the set point pressure. To ensure safe pressure regulations at all times, the set point pressure can easily be adjusted manually or from a remote location that is connected to the central control system.
Hygienic, easy-to-clean design
To meet exceptionally high levels of hygiene, this regulating valve features simple, straightforward design. Smooth surfaces and food-grade finishes contribute to superior hygiene and cleanability. For fast, effective cleaning, a cleaning nozzle is supplied for inline cleaning of the valve at the same time as Cleaning-in-Place of the vent/recovery mains takes place. Alternatively, an optional CIP supply valve is available to connect a CIP system directly to the valve housing.
Flexible valve mounting
With flexible mounting positions, the valve can be positioned directly on tank top, as part of a tank top system or elsewhere along the pipework as long as there is proper drainage from the valve housing.
